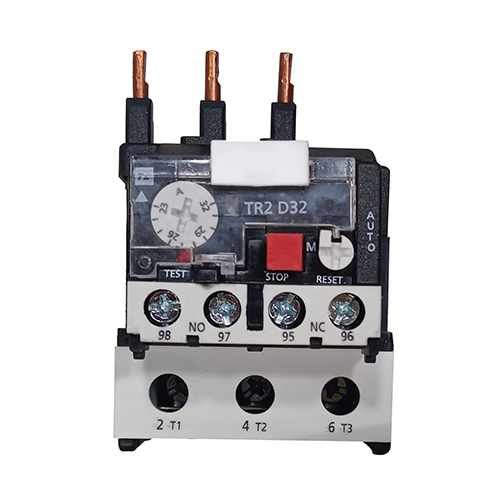

TC Relay

Get a Price/Quote

MOQ : 10 Pieces

TC Relay Specification

Contact Material
Silver Alloy

Power Consumption
Approx. 0.36W

Contact Form
SPDT

Coil Voltage
12V DC

Ambient Temperature
-40C to +70C

Contact Resistance
100 m

Dielectiric Strength
1500VAC, 1 min

Working Temperature
-40C to +70C

Coil Power
Approx. 0.36W

Protect Feature
Sealed

Mechanical Life
10,000,000 cycles

Product Type
TC Relay

Insulation Resistance
100 M min. (DC 500V)

Theory
Electromagnetic Relay

Usage
Electronics, Industrial Automation

Contact Load
10A 250V AC

Operate Time
Less than 10 ms

Terminal Type
Plug-in

Rated Voltage
12V DC

Supply Terminal
Screw Terminal

Size
Standard

Color
Black & Transparent

Dimension (L*W*H)
35mm x 27mm x 21mm

Weight
Approx. 60g

Storage Temperature
-55C to +125C

Switching Voltage
250V AC, 30V DC Max

Mounting Type
PCB Mount/Panel Mount

Vibration Resistance
10-55Hz, amplitude 1.5mm

Switching Current
10A Max

About TC Relay

Experience the sizzling performance of the TC Relay, an extraordinary choice for electronics and industrial automation enthusiasts. With support for both PCB and panel mounting, this formidable relay flaunts a grand mechanical life of up to 10,000,000 cycles and withstands extreme temperatures from -55C to +125C. Deliver commanding control-with up to 250VAC and 30VDC at 10A max. The quick operate time, robust vibration resistance, and premium sealed build ensure enduring reliability. Pick yours today-purchase and harness true industrial-grade excellence.

Applications and Sites of Use for TC Relay

The TC Relay delivers outstanding performance across a wide surface of applications. Designed for seamless integration, it is specifically tailored for usage in electronics projects and grand industrial automation setups. Its rugged build allows for installation in panels or circuit boards, making it suitable for factories, control rooms, and high-performance electronic assemblies. Wherever reliable switching and control are crucial, the TC Relay stands as a formidable, dependable option.

Packaging Details, Payment Terms, and Samples

Every TC Relay is securely packaged to minimize expenditure related to delivery issues, ensuring safe arrival at your facility. Upon confirmation of a purchase order, prompt and streamlined shipping comes standard. Flexible payment terms are available, catering to both immediate and long-term business relationships. For those evaluating product suitability, samples can be requested, helping you make informed decisions before making a grand-scale purchase.

FAQ's of TC Relay:

Q: How can the TC Relay be mounted for different applications?

A: The TC Relay offers versatile mounting options, allowing for installation on both PCBs and panels. This adaptability makes it suitable for various electronics and industrial environments.

Q: What is the maximum switching current and voltage supported by the TC Relay?

A: The relay can handle up to 10A of switching current and supports a maximum switching voltage of 250V AC or 30V DC, making it ideal for high-power applications.

Q: Where is the best site to install the TC Relay?

A: The relay is suitable for installation in electronic control units, industrial automation panels, and machinery where dependable switching is a necessity.

Q: What are the payment and delivery terms for purchasing the TC Relay?

A: Flexible payment terms are provided to meet different purchaser requirements. After receiving a purchase order, the product is expediently delivered, minimizing downtime and ensuring timely integration.

Q: Is it possible to request a sample of the TC Relay before purchasing in bulk?

A: Yes, samples are available for customers wishing to evaluate the relay's performance and suitability for their specific needs prior to making a larger purchase.

Q: What benefits does the TC Relay offer for industrial automation?

A: The TC Relay provides a formidable combination of long mechanical life, exceptional operating temperature range, and robust protection features-ensuring reliable operation in demanding industrial environments.
